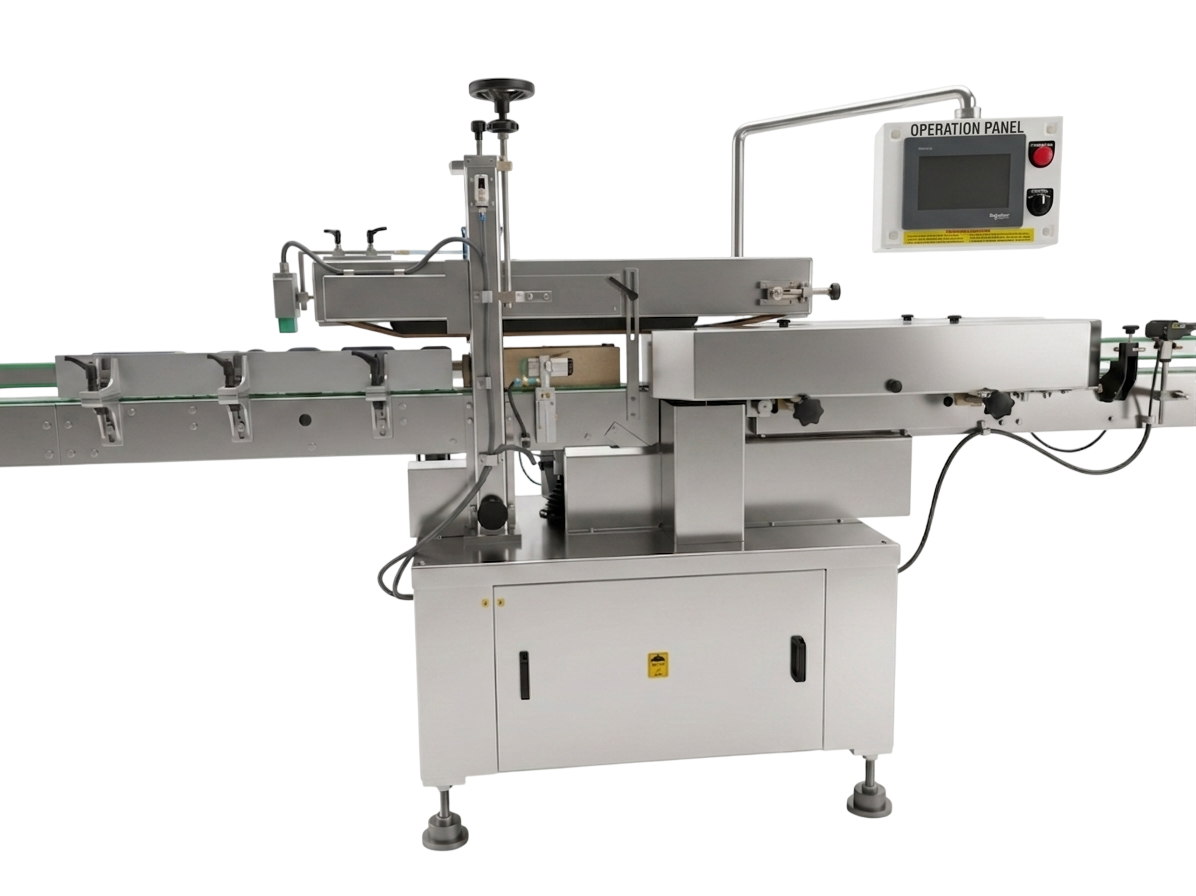

Automatic Linear Labelling Machine (Wet Glue) in Motion — A Complete Guide
📋 Table of Contents
What is an Automatic Linear Wet Glue Labelling Machine?
An Automatic Linear Labelling Machine (Wet Glue) is a high-speed packaging system that applies pre-cut paper labels onto bottles, jars, or containers using a water-based adhesive — commonly called wet glue or cold glue. Unlike self-adhesive roll-label machines, wet glue labellers pick individual labels from a flat magazine, coat them with adhesive via a rotating glue roller, and firmly press them onto the container surface as it travels in a straight-line (linear) path.
This method delivers a flat, seamless, premium label finish — making it the preferred choice for glass bottles in the beverage, brewery, spirits, pharmaceutical, and premium food industries. Jagat Industries manufactures Automatic Linear Wet Glue Labelling Machines engineered for high-throughput production, consistent label placement, and easy integration with existing packaging lines.
Key Features
Rotary Glue Drum System
A precisely engineered rotating glue drum applies a uniform, controlled adhesive coat to each label — eliminating glue pooling, smearing, or skip-glue defects at high speeds.
PLC + HMI Control
Programmable PLC automation with touchscreen HMI enables recipe-based speed control, glue temperature settings, label gap calibration, and real-time diagnostics.
High-Capacity Label Magazine
Large-capacity label magazines hold thousands of pre-cut labels, minimising refill interruptions during long production runs and maximising uptime.
SS 304 Robust Frame
Food-grade stainless steel construction ensures durability, hygiene compliance, and resistance to moisture — critical for cold-bottle and wet-environment applications.
No Bottle – No Label Safety
Photoelectric sensors detect container absence and automatically pause label dispensing, preventing adhesive wastage and magazine misfeed.
High-Speed Throughput
Capable of labelling 200–600+ bottles per minute, Jagat Industries’ wet glue machines are built for high-volume production environments with minimal downtime.
Wet Glue Labelling in Motion — Step by Step
Watching an Automatic Linear Wet Glue Labelling Machine in motion is a study in mechanical precision — each stage seamlessly handing off to the next at speeds exceeding hundreds of bottles per minute.
Container Infeed & Spacing
Bottles enter via conveyor and are spaced at precise, equal intervals by a worm-gear spacing mechanism to ensure consistent label timing at every station.
Label Pick from Magazine
A rotating label pick-up drum extracts individual pre-cut labels from the magazine stack one at a time, synchronised precisely with the incoming container flow.
Glue Application
Each picked label passes over the rotating glue drum, which applies a thin, uniform layer of water-based adhesive across the full label surface — consistent coat, zero excess.
Label Transfer & Application
The glue-coated label is transferred onto the container surface at the application station. Soft rubber pressing rollers wrap and firmly bond the label around the bottle profile.
Pressing & Smoothing
Sponge or brush pressing stations smooth the label from centre to edges, eliminating air bubbles, wrinkles, and lifting edges — ensuring a flat, premium label finish.
Outfeed & Downstream Transfer
Labelled containers move to the outfeed conveyor — ready for batch coding, inspection, secondary packaging, or palletising downstream.
Why Choose Wet Glue Labelling?
- Premium Label Finish: Wet glue delivers a flat, flush label-to-container bond — no silvering, no lifting edges — giving bottles a high-end, retail-ready appearance.
- Lower Label Material Cost: Pre-cut paper labels used in wet glue machines are significantly cheaper per unit than self-adhesive roll labels, reducing packaging costs at high volumes.
- Ideal for Glass Containers: The strong adhesive bond of wet glue is particularly suited to glass bottles — the industry standard for beverages, spirits, syrups, and premium food products.
- Cold-Bottle Compatible: Specially formulated cold glue adhesive systems handle condensation on chilled or pasteurised bottles — critical in brewery and carbonated beverage production lines.
- High-Speed Production: Wet glue machines comfortably label 200–600+ BPM, making them ideal for large-scale, continuous production with minimal stoppages.
- Eco-Friendly: Water-based adhesives and paper labels are biodegradable and recyclable, supporting sustainable packaging commitments and green manufacturing initiatives.
Technical Specifications
| Parameter | Standard Model | High-Speed Model |
|---|---|---|
| Labelling Speed | 100–300 BPM | 300–600+ BPM |
| Label Accuracy | ±1.5 mm | ±0.5–1 mm |
| Label Size (L × W) | 30–200 mm × 20–150 mm | 20–250 mm × 15–180 mm |
| Container Diameter | 30–120 mm | 20–150 mm |
| Container Height | 60–350 mm | 50–400 mm |
| Container Type | Glass / PET (Round) | Glass / PET / Metal (Round) |
| Glue Type | Cold Wet Glue (Water-based) | Cold / Hot Melt Wet Glue |
| Machine MOC | SS 304 Frame | SS 304 / SS 316 (Pharma) |
| Control System | PLC + HMI (7″) | PLC + HMI (10″) + Recipe Storage |
| Power Supply | Single Phase, 220V, 50Hz | 3 Phase, 440V, 50Hz |
* Specifications are indicative. Custom configurations available based on container profile and label dimensions. Contact Jagat Industries for a tailored quotation.
Industries & Applications
The Automatic Linear Wet Glue Labelling Machine is the labelling method of choice wherever premium paper label aesthetics and high-speed glass bottle production meet. Jagat Industries serves a wide range of sectors with customised wet glue solutions.
Why Choose Jagat Industries
🏭 In-House Manufacturing
Every wet glue labelling machine is designed, fabricated, and tested in our facility — zero outsourcing, full quality control at every build stage.
🔧 Custom-Engineered Solutions
Machines built to your container profile, label format, glue type, and line speed — not off-the-shelf configurations that compromise performance.
✅ Compliance Ready
Machines meet WHO-GMP, FSSAI, BIS, and beverage industry standards with full validation support available for regulated environments.
🛠️ Full After-Sales Support
On-site installation, operator training, preventive maintenance contracts, and rapid spare parts supply across India and export markets.
Frequently Asked Questions
The Gold Standard for Premium Bottle Labelling
The Automatic Linear Labelling Machine (Wet Glue) remains the gold standard wherever premium label quality, high-volume throughput, and cost-effective paper labelling are required — particularly for glass bottles in beverage, brewery, spirits, pharmaceutical, and premium food industries. Its flat, seamless finish, cold-bottle compatibility, and lower per-label cost make it an enduring choice for manufacturers who refuse to compromise on shelf presence.
Jagat Industries brings deep application expertise and precision engineering to every wet glue labelling machine we build. Whether you are setting up a new high-speed bottling line or upgrading an existing labelling station, our team is ready to engineer the perfect solution for your production needs. Explore our full range of labelling and packaging machinery or connect with us today for a consultation.
