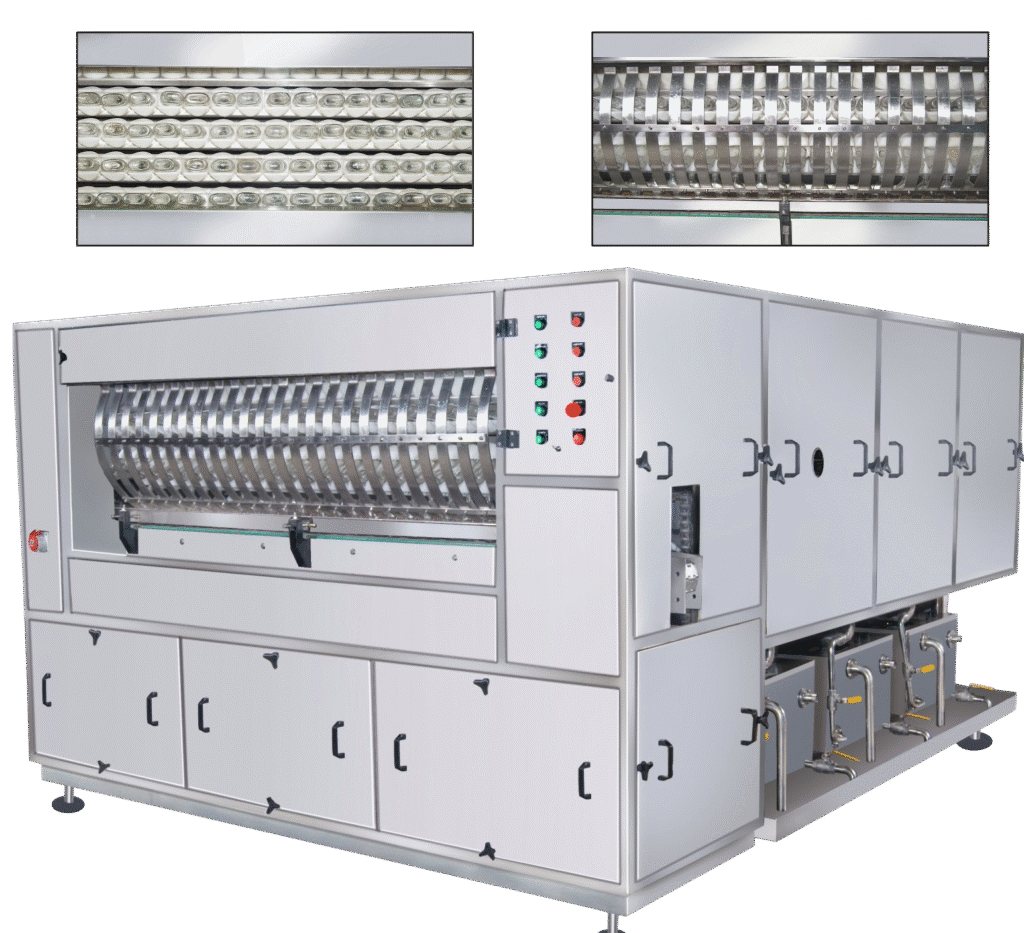

Automatic Tunnel Rinsing Machine — Multi-Stage Bottle Rinser for Distilleries & Beverage Lines
Jagat Industries is a leading manufacturer, exporter, and supplier of the Automatic Tunnel Rinsing Machine for the liquor, food, and beverage industries. Designed for manual loading and automatic unloading, this machine is particularly suited for flat-shaped and standard bottles used in distilleries and food processing plants. Bottles are placed manually into carrier pockets and then pass through a three-stage rinsing cycle using underground water, DM water, or hot water — with full recirculation support to minimise wastage.
For GMP guidelines on bottle cleaning in regulated industries, refer to the WHO GMP guidelines for pharmaceutical packaging.
How It Works
Bottles are manually loaded into individual pockets on an SS wire mesh conveyor. Once placed, the machine automatically inverts each bottle and subjects it to three sequential rinse stages — pre-rinse, main wash, and final rinse. After all stages are complete, bottles are re-inverted and discharged automatically onto the outfeed conveyor. The manual loading format is especially suited for flat or irregular-shaped bottles that require more careful placement.
Key Features
- 3-Stage Rinsing Cycle — Pre-rinse, main wash, and final rinse for thorough internal cleaning
- Manual Loading / Auto Unloading — Operator-assisted infeed with fully automatic outfeed
- Multi-Media Compatible — Supports underground water, DM water, and hot water with recirculation
- Flat-Bottle Capable — Ideal for flat and non-round bottle shapes common in distilleries
- GMP-Compliant SS Construction — All product-contact parts manufactured from stainless steel
Applications
- Distilleries — Rinsing flat and round glass bottles before liquor filling
- Food & Beverage — Cleaning PET and glass bottles before juice, sauce, or water filling
- Industrial Packaging — Suitable for non-standard bottle shapes that require manual placement
Pairs well with our Automatic Gravity Filling Machine for a complete rinse-to-fill bottling line.
Frequently Asked Questions
Manual loading allows careful placement of flat or irregular-shaped bottles that cannot be handled by standard automatic unscramblers. The machine’s automatic unloading ensures speed is not compromised after the rinse cycle.
Three stages — pre-rinse, main wash, and final rinse — ensuring thorough removal of dust and residues.
Underground water, DM (demineralised) water, and hot water, all with recirculation capability.
Yes. The liquor segment version features manual loading and is optimised for distillery bottle formats. The pharma version (P-Alpha series) is fully automatic with auto loading and unloading.
Yes, it supports both glass and PET bottles across standard sizes.
