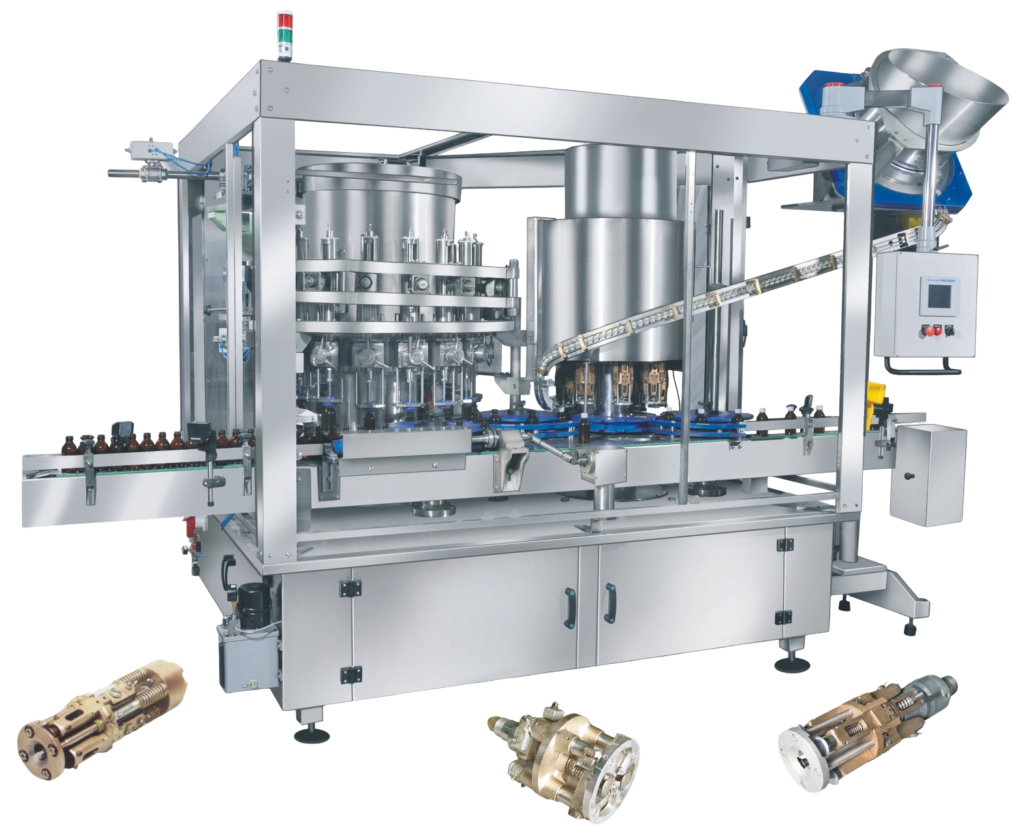

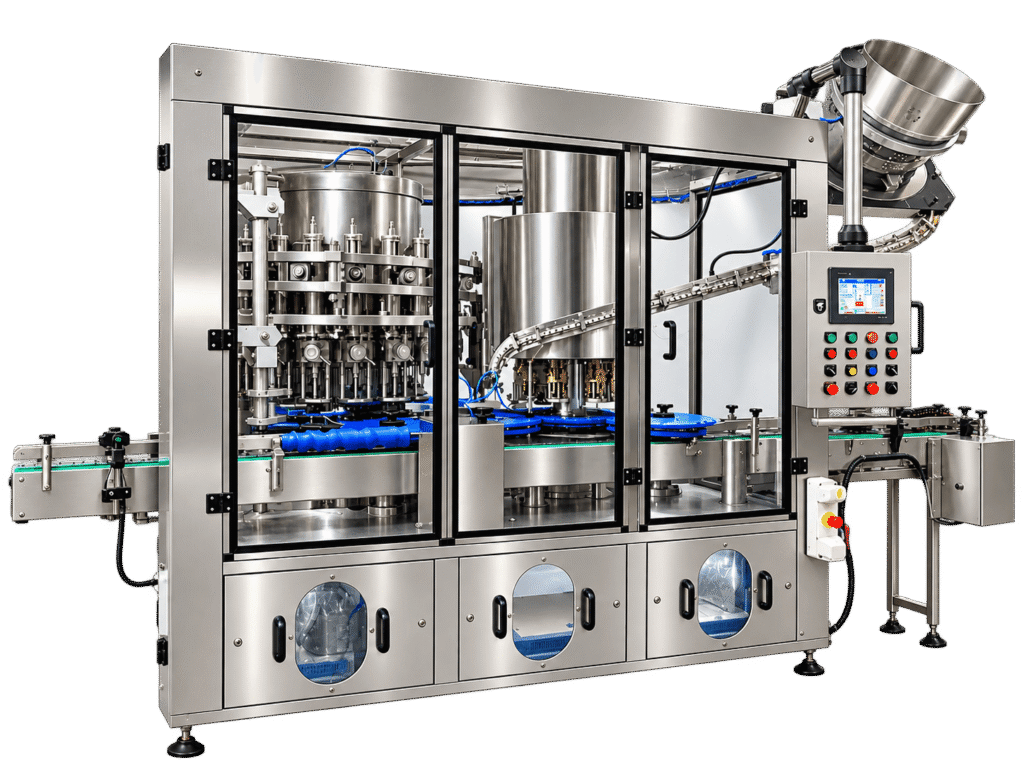

Automatic Monoblock Filling & Sealing Machine (Volumetric R.O.P.P.) — Pharma Liquid Filling & ROPP Sealing
Jagat Industries is a trusted manufacturer, exporter, and supplier of the Automatic Monoblock Filling & Sealing Machine (Volumetric R.O.P.P.) — a pharma-grade compact machine that integrates volumetric liquid filling and ROPP cap sealing on a single frame. Designed for pharmaceutical liquid filling lines, this volumetric monoblock machine delivers precise, measured fill volumes with GMP-compliant stainless steel construction throughout.
For GMP-compliant pharmaceutical packaging equipment standards, refer to the WHO GMP guidelines for pharmaceutical packaging.
How It Works
Bottles are fed via an infeed conveyor into the volumetric filling station, where precision piston pumps or flow meters dispense an exact, pre-set volume of liquid into each bottle — regardless of liquid level variation. This is critical for pharmaceutical applications where fill accuracy must meet regulatory standards. Filled bottles then pass directly to the ROPP sealing station, where aluminium caps are automatically fed and crimped to provide a tamper-evident, pilfer-proof closure. The entire process is automatic and GMP-compliant.
Key Features
- Volumetric Filling — Precise piston or flow-meter dosing for exact fill volumes; pharma-grade accuracy
- Integrated ROPP Sealing — Fill and ROPP seal on one frame; reduces line footprint and operator count
- GMP-Compliant SS Construction — All product-contact parts in food-grade stainless steel
- Auto Cap Feeder — Automatic cap feeding for continuous, hands-free sealing
- Adjustable Fill Volume — Fill volume easily adjusted for different product SKUs
- Compact Monoblock Frame — Single frame reduces investment vs. two separate machines
Applications
- Pharmaceuticals — Volumetric filling of liquid medicines, syrups, and oral solutions with ROPP sealing
- Healthcare Products — Filling and sealing antiseptics, disinfectants, and health supplements
For screw-cap pharma filling, see our Automatic Monoblock Filling & Sealing Machine (Volumetric Screw Capping).
Technical Specifications
| Model | Length (mm) | Width (mm) | Height (mm) | Output (BPM) |
|---|---|---|---|---|
| 8 / 8 Head | 1676 | 1397 | 2400 (Approx.) | 120 |
| 12 / 8 Head | 1829 | 1537 | 2400 (Approx.) | 150 |
| 16 / 8 Head | 2311 | 1956 | 2400 (Approx.) | 180 |
| 20 / 10 Head | 2718 | 2311 | 2400 (Approx.) | 260 |
| 30 / 15 Head | 3429 | 2946 | 2400 (Approx.) | 300 |
Frequently Asked Questions
olumetric filling dispenses a precise, pre-set volume of liquid into each container using a piston pump or flow meter. Unlike gravity or vacuum level filling, it ensures exact fill weights regardless of bottle volume variation — essential for pharmaceutical compliance.
Volumetric filling measures and dispenses a fixed volume. Level filling fills all bottles to the same visual level. Pharma regulations typically require volumetric accuracy.
Yes. All product-contact parts are stainless steel, and the machine is designed to meet pharma GMP requirements.
ROPP (Roll-On Pilfer-Proof) aluminium caps for tamper-evident closure.
Yes. Volume adjustment is done via the control panel or volume setting mechanism without major disassembly.
