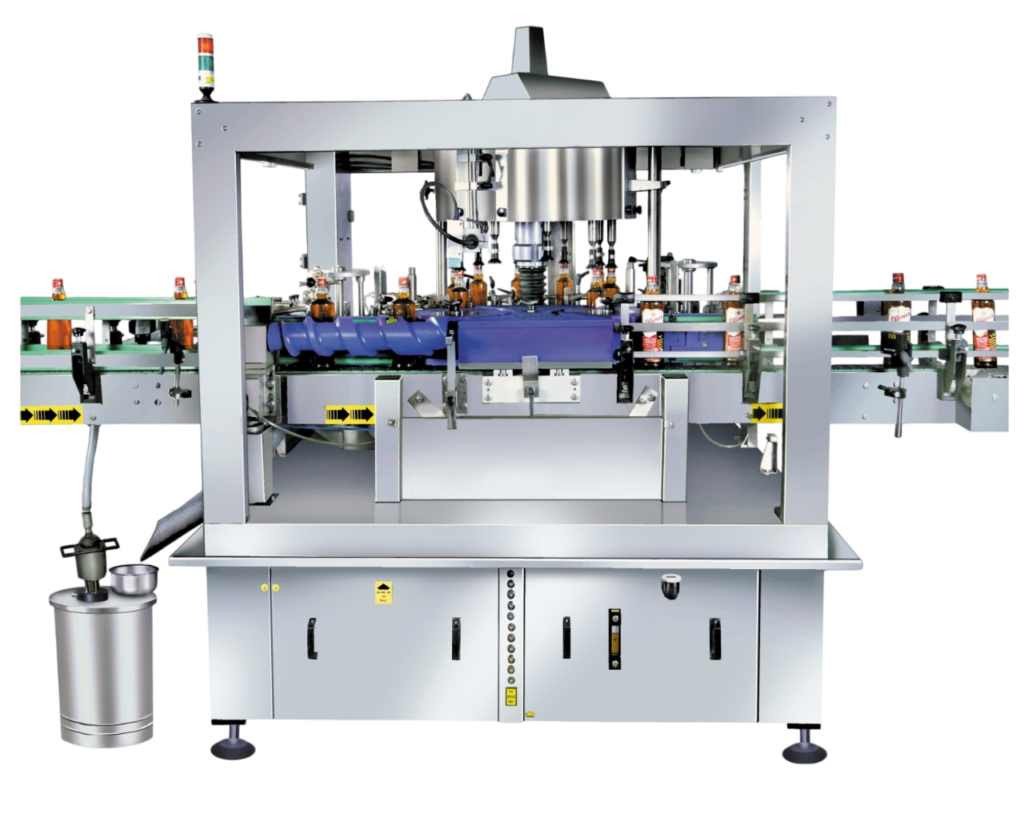

Automatic Rotary Labelling Machine (Wet Glue) — High-Speed Paper Label Applicator for Bottles
Jagat Industries is a leading manufacturer, exporter, and supplier of the Automatic Rotary Labelling Machine (Wet Glue) — a high-speed rotary labelling system designed for applying paper labels to round glass and PET bottles using the wet glue method. Widely used in liquor, beverage, food, and pharmaceutical bottling lines, our wet glue labelling machine delivers precise label placement at high throughput with minimal operator involvement.
For labelling standards in packaging, see PMMI’s packaging machinery resources.
How It Works
Bottles are fed via a conveyor onto a rotating turntable. As each bottle passes through the labelling station, a pre-cut paper label is picked from the label magazine, coated with glue on the reverse side, and applied to the bottle with precise placement. The bottle then passes through a wiping station to ensure the label is firmly pressed and wrinkle-free. The rotary format enables continuous, high-speed labelling without stopping the bottle flow.
Key Features
- Wet Glue Paper Labelling — Traditional and widely-used method for round glass and PET bottles
- Rotary Continuous Operation — No stop-start cycle; high-speed, uninterrupted label application
- Precise Label Placement — Consistent label position and alignment across all bottles
- Automatic Label Feed — Label magazine feeds continuously; minimal manual replenishment
- Wide Bottle Compatibility — Handles round glass and PET bottles across standard sizes
- Compact Frame Design — Suitable for inline integration with existing bottling lines
Applications
- Liquor & Distilleries — Paper label application for spirits, whisky, and rum bottles
- Beverages — Labelling water, juice, and soft drink glass and PET bottles
- Food Industry — Label application for sauces, vinegars, and cooking oils
For a self-adhesive sticker labelling option, see our Automatic Sticker Labelling Machine (Sticmatic).
Technical Specifications
| Name | Model | Conv. L (mm) | L (mm) | B (mm) | H (mm) | Output Bottles/Hours |
|---|---|---|---|---|---|---|
| Universal | 3:4:10 | 3657 | 1828 | 1524 | 2160 | 12,000–14,000 |
| Universal | 4:4:10 | 3657 | 1828 | 1524 | 2160 | 16,000–18,000 |
| Universal | 6:4:10 | 3657 | 1828 | 1524 | 2160 | 18,000–20,000 |
| Universal | 6:4:15 | 3657 | 1981 | 1676 | 2160 | 20,000–24,000 |
Frequently Asked Questions
Wet glue labelling uses a water-activated or cold-glue adhesive applied to paper labels before they are pressed onto the bottle. It is the traditional labelling method widely used in liquor and beverage industries for round containers.
Round glass and PET bottles across standard sizes. Non-round bottles require a different labelling solution.
Rotary labelling uses a carousel format for continuous high-speed operation. Linear labelling moves bottles in a straight line and is typically used for lower speeds or non-round containers.
Contact our team — multi-label configurations are available for front, back, and neck labels on the same machine.
Pre-cut paper labels. Self-adhesive sticker labels require a different machine (see our Sticmatic range).
