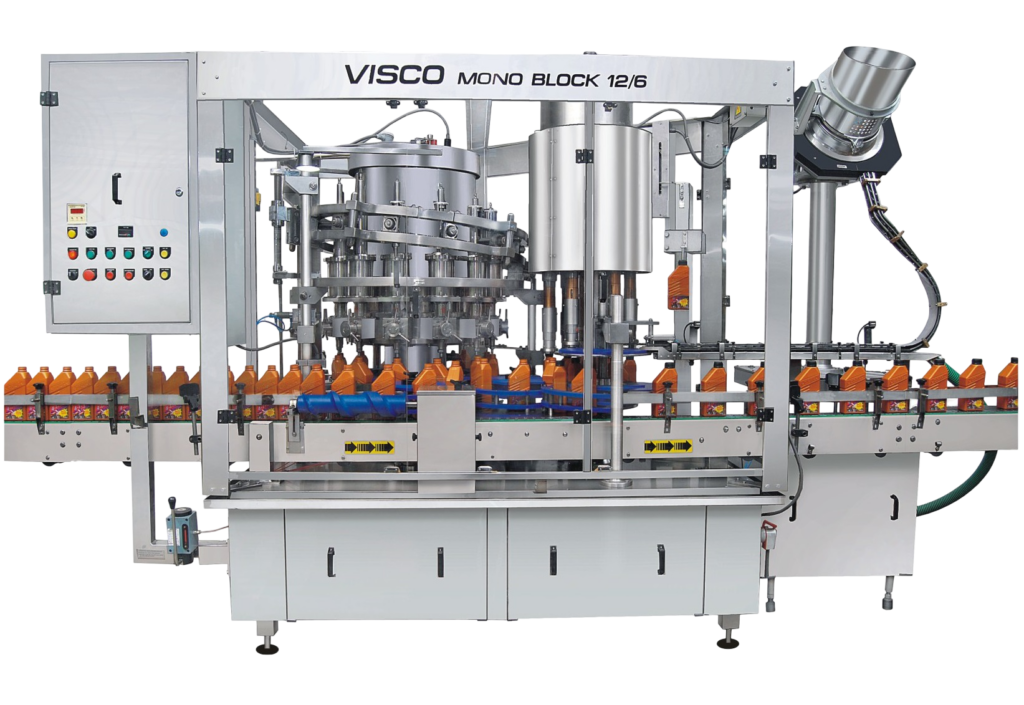

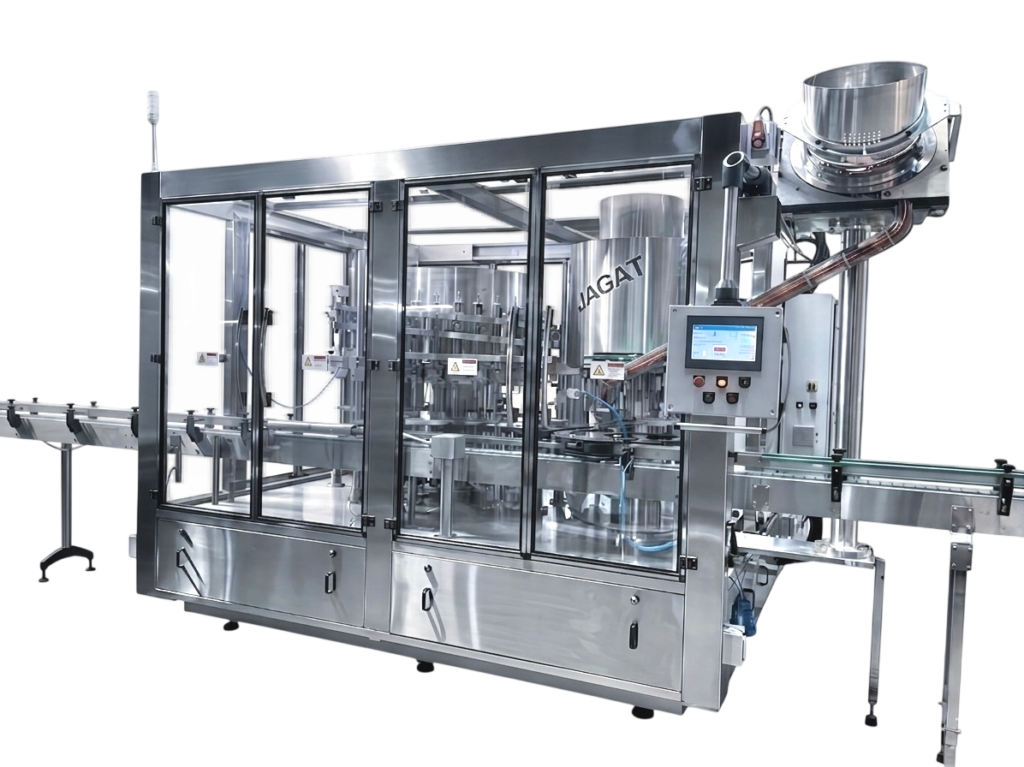

Automatic Monoblock Filling & Sealing Machine (Volumetric Screw Capping) — Pharma Fill & Cap Solution
Jagat Industries manufactures the Automatic Monoblock Filling & Sealing Machine (Volumetric Screw Capping) — a pharma-grade monoblock machine that combines precision volumetric liquid filling and automatic screw capping on a single compact frame. Ideal for pharmaceutical syrups, oral solutions, and liquid medicines packaged in screw-cap bottles, this machine delivers accurate fill volumes and consistent cap torque in a GMP-compliant, fully automatic system.
For pharma filling equipment standards, refer to the WHO GMP guidelines for pharmaceutical packaging.
How It Works
Bottles are fed via an infeed conveyor into the volumetric filling station, where piston pumps or flow meters dispense an exact pre-set liquid volume into each container. Filled bottles then pass to the integrated screw capping station, where caps are automatically fed from a hopper or vibratory bowl and applied with a controlled, uniform torque — ensuring a consistent, leak-proof closure on every bottle. The process is fully automatic and designed for GMP pharmaceutical environments.
Key Features
- Volumetric Precision Filling — Piston or flow-meter dosing for exact, repeatable fill volumes
- Integrated Screw Capping — Auto cap feeder and torque-controlled screw capping in one frame
- GMP-Compliant Design — Stainless steel product-contact parts; cleanable and validation-ready
- Adjustable Fill Volume — Quick volume change for different SKUs without major changeover
- Auto Cap Feeder — Hopper or vibratory bowl for continuous, hands-free cap supply
- Compact Monoblock Frame — Reduced line footprint and capital cost vs. two separate machines
Applications
- Pharmaceuticals — Syrups, oral solutions, and suspensions in screw-cap HDPE or glass bottles
- Healthcare — Antiseptics, supplements, and tonic filling with screw-cap closure
For ROPP-sealed pharma filling, see the Automatic Monoblock Filling & Sealing Machine (Volumetric R.O.P.P.).
Technical Specifications
| Model | Length (mm) | Width (mm) | Height (mm) | Output (BPM) |
|---|---|---|---|---|
| 8 / 8 Head | 1956 | 1549 | 2400 (Approx.) | 120 |
| 12 / 8 Head | 2210 | 1702 | 2400 (Approx.) | 150 |
| 16 / 8 Head | 2311 | 1956 | 2400 (Approx.) | 240 |
| 20 / 10 Head | 2718 | 2311 | 2400 (Approx.) | 280 |
| 30 / 15 Head | 3429 | 2946 | 2400 (Approx.) | 320 |
Frequently Asked Questions
Screw capping applies a pre-formed plastic or aluminium screw cap by rotation. ROPP sealing applies a blank aluminium shell that is roll-formed onto the bottle thread during the sealing process. Screw caps are reusable; ROPP caps provide tamper evidence.
HDPE plastic bottles and glass bottles with standard screw-cap neck finishes. Contact us for specific neck dimensions.
Yes. Volume is easily set via the control panel for different product SKUs.
Yes — stainless steel product-contact parts, cleanable design, and validation documentation available.
Yes — a hopper or vibratory bowl feeder supplies caps automatically.
