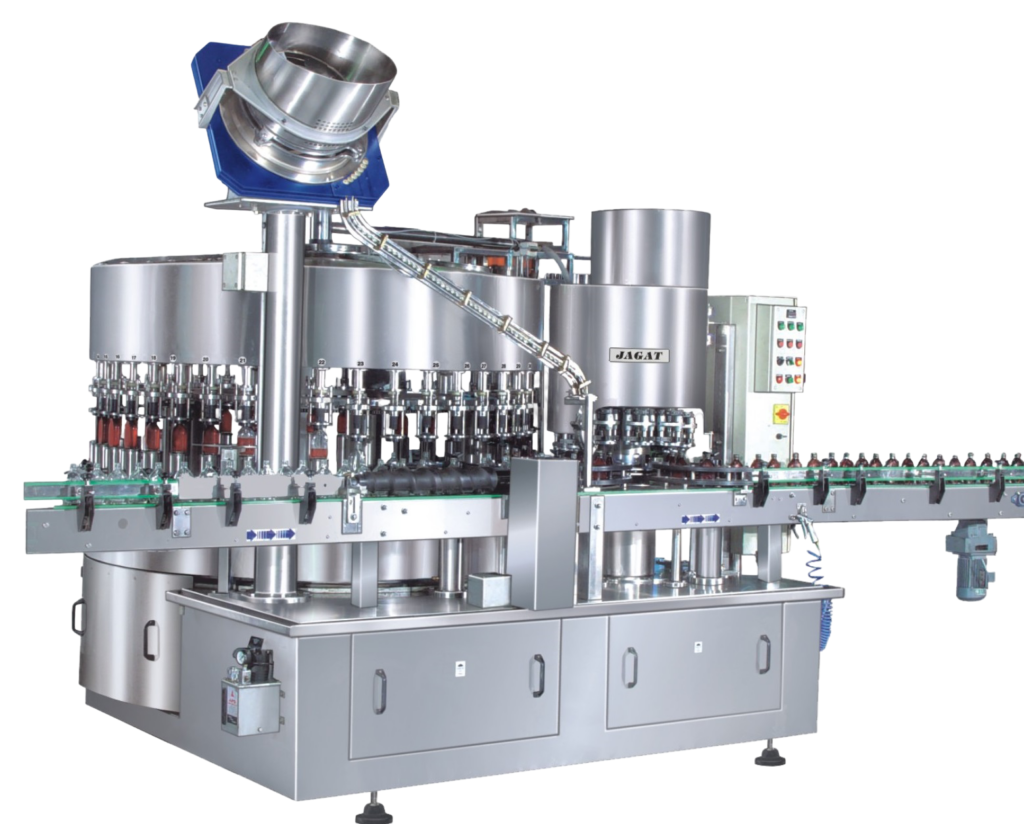

Automatic Monoblock Filling & Sealing Machine (Gravity) — Compact Fill & Seal for Beverage & Liquor Lines
Jagat Industries is a renowned manufacturer, exporter, and supplier of the Automatic Monoblock Filling & Sealing Machine (Gravity) — a compact rotary machine that integrates gravity filling and ROPP cap sealing into a single frame. Designed for non-carbonated, non-viscous liquids such as mineral water, juice, milk, liquor, and vinegar, this gravity monoblock filling machine reduces capital investment, floor space requirements, and manpower without compromising production output or quality.
For packaging line standards, refer to PMMI’s packaging machinery resources.
How It Works
Bottles are fed via an infeed conveyor into the gravity filling station. Liquid flows directly from the product tank through precision nozzles at the base of the tank — eliminating PVC tubing and ensuring hygienic, contamination-free filling. The machine functions as a level filler, maintaining uniform fill heights across all containers. After filling, bottles move directly to the ROPP cap sealing section on the same frame, where caps are automatically fed and sealed, completing the fill-and-seal process in one continuous operation.
Technical Specifications
| Model | L (mm) | B (mm) | Power – Main M/C | Speed (180 ml) |
|---|---|---|---|---|
| 12/6 Heads | 2440 | 1220 | 3.5 H.P. | 80 BPM |
| 20/8 Heads | 3075 | 1905 | 6.5 H.P. | 120 BPM |
| 30/10 Heads | 3660 | 2310 | 6.5 H.P. | 150 BPM |

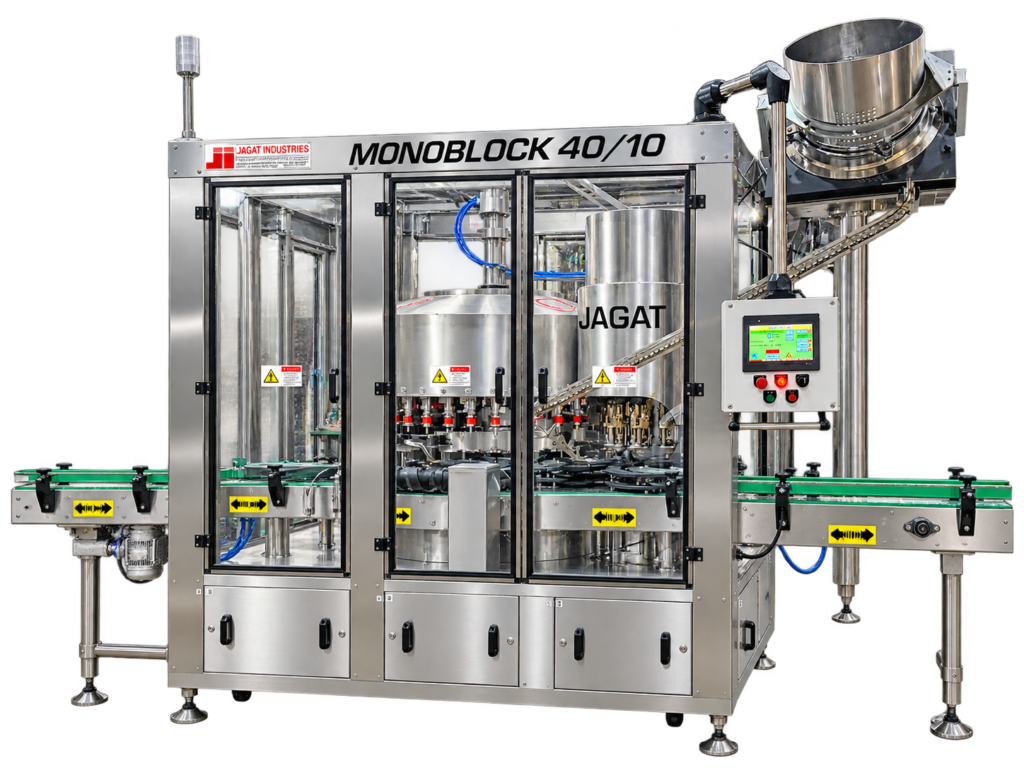

| 40/10 Heads | 3910 | 2695 | 9.0 H.P. | 200 BPM |
| 50/15 Heads | 3600 | 3300 | 9.0 H.P. | 300 BPM |
Key Features
- Gravity Level Filling — Direct tank-to-nozzle flow, no PVC tubes, hygienic and uniform
- Integrated ROPP Sealing — Fill and seal on one frame; reduces line length and operator count
- Auto Cap Feeder — Automatic cap feeding eliminates manual cap handling
- PET & Glass Compatible — PET as standard; glass option available with partial vacuum
- Up to 300 BPM — 50/15 head model for the highest output requirements
- Compact Single Frame — Significant floor-space saving over two separate machines
Applications
- Mineral Water & Beverage — High-speed gravity filling and ROPP sealing of PET bottles
- Liquor & Distilleries — Filling and sealing spirits in PET and glass bottles
- Food Industry — Juice, milk, vinegar, and cooking oil filling and sealing
For higher-throughput lines requiring rinsing, filling, and sealing in one unit, see our Automatic Combiblock Rinsing Filling & Sealing Machine (Gravity).
Frequently Asked Questions
The gravity monoblock uses natural liquid flow and is best for PET bottles with free-flowing liquids. The vacuum monoblock uses suction-based filling and is better suited for glass bottles where precise level uniformity is critical.
Yes, with the optional partial vacuum attachment for glass bottle applications.
ROPP (Roll-On Pilfer-Proof) cap sealing, standard for liquor, water, and beverage bottles.
The 12/6 head model (12 filling heads, 6 sealing heads) delivers 80 bottles per minute — ideal for smaller production lines.
Yes, provided the milk is non-carbonated and non-viscous. The machine is suitable for standard liquid milk.
