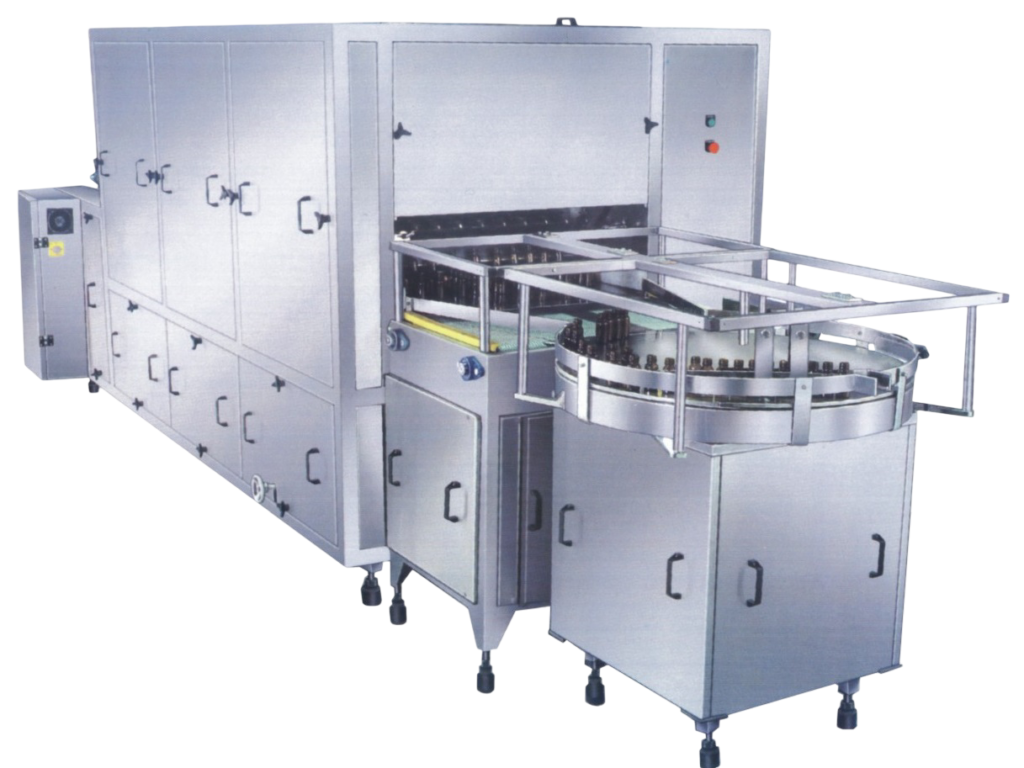

Automatic Tunnel Rinsing Machine
Jagat Industries is a trusted manufacturer, exporter, and supplier of the Automatic Tunnel Rinsing Machine — built for continuous, high-speed, multi-stage bottle cleaning across pharmaceutical, distillery, food, and beverage industries. Compatible with both glass and PET bottles, our tunnel bottle rinsing machine ensures thorough internal cleansing before filling, maintaining the highest standards of hygiene and product safety. All machines are manufactured from premium-grade stainless steel and tested rigorously on quality parameters before dispatch.
For compliance reference, see the WHO GMP guidelines for pharmaceutical packaging.
How It Works
Bottles enter via an SS wire mesh infeed conveyor and are automatically transferred into carrier pockets by a bottle pusher plate. They are then inverted and passed through three sequential rinsing stages using underground water, DM water, or hot water — with recirculation support to reduce wastage. After rinsing, bottles are re-inverted and discharged onto the outfeed conveyor, ready for filling. The entire process is fully automatic with no manual intervention required.
Technical Specifications:
| Description | Model | Packets Across | Length (mm) | Width (mm) | Height (mm) | Output (BPM) | Washing Cycles |
|---|---|---|---|---|---|---|---|
| Tunnel Type | P-Alpha 5 | 5 | 3810 | 1270 | 1800 | 40–60 | 3 Stages |
| Auto Loading | P-Alpha 10 | 10 | 3810 | 1650 | 1800 | 100–120 | 3 Stages |
| & | P-Alpha 14 | 14 | 3810 | 1930 | 1800 | 120–150 | 3 Stages |
| Auto Unloading | P-Alpha 20 | 20 | 3810 | 2520 | 1800 | 200–240 | 3 Stages |
Key Features - automatic tunnel rinsing machine
- 3-Stage Wash Cycle — Removes dust, particles, and residues from bottle interiors
- Fully Automatic — Auto infeed, rinsing, and outfeed; no operator dependency
- High-Speed Output — Up to 200–240 BPM for large-scale production
- Flexible Washing Media — DM water, hot water, or underground water with recirculation
- GMP-Compliant SS Construction — All contact parts in food-grade stainless steel
- Wide Bottle Compatibility — Round glass and PET bottles across standard sizes
Applications
Our multi-stage Automatic Tunnel Rinsing Machine serves:
- Pharmaceuticals — Glass and HDPE bottle rinsing before liquid medicine filling
- Distilleries — Pre-wash of glass bottles before liquor filling
- Food & Beverage — PET and glass bottle cleaning before juice, sauce, or water filling
A tunnel rinsing machine moves bottles in a continuous linear flow through multiple wash stages, making it ideal for high-speed, high-volume lines. A rotary rinser uses a carousel format and is better suited for medium-speed operations.
Yes. In the Automatic Tunnel Rising Machine, all product-contact parts are food-grade stainless steel, GMP-compliant, and suitable for pharmaceutical, food, and beverage environments. Learn more about packaging equipment standards at PMMI’s packaging machinery resources.
Yes. The machine connects directly upstream of filling and sealing equipment, including monoblock and combiblock systems.
