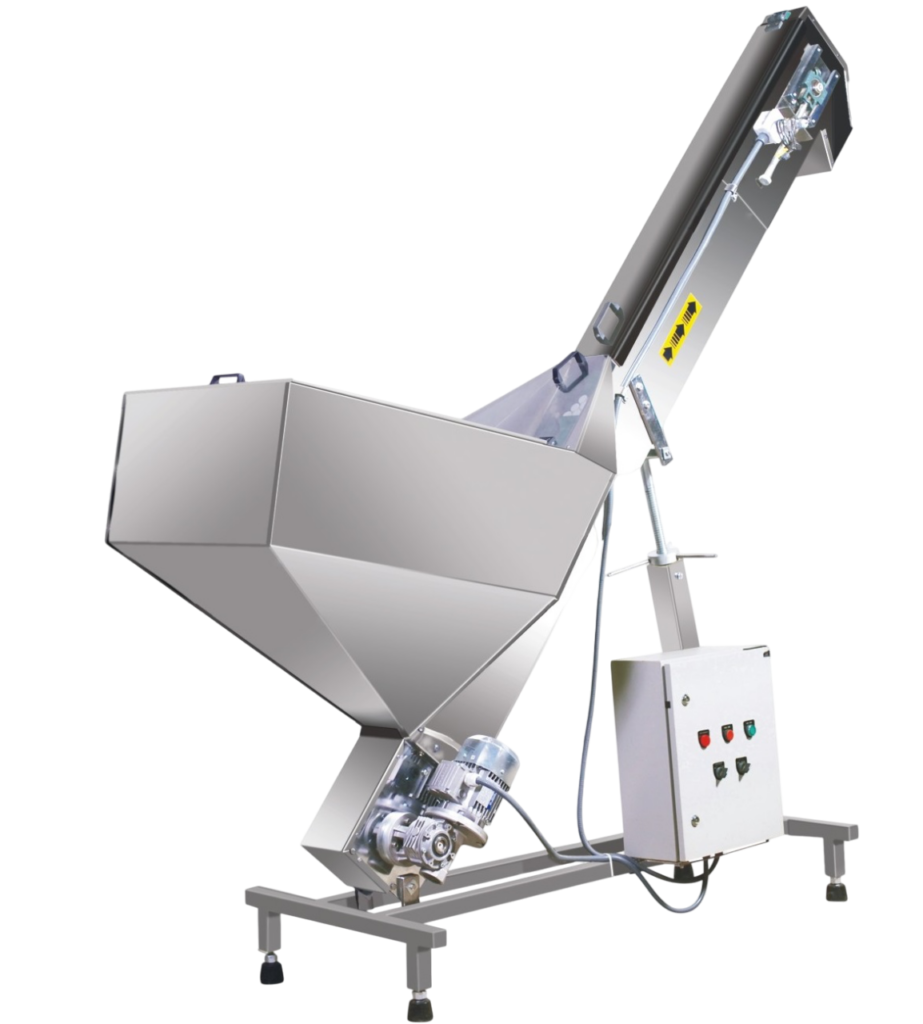

Bulk Cap Elevator — Automatic Cap Feeding & Lifting System for Bottling Lines
Jagat Industries manufactures the Bulk Cap Elevator — an automatic cap feeding and lifting system that continuously supplies ROPP aluminium caps or plastic closures from a bulk hopper to the cap sorting and feeding station on sealing and monoblock machines. By automating cap supply, the bulk cap elevator eliminates manual cap loading, reduces downtime between batch refills, and ensures a consistent, uninterrupted flow of caps to high-speed sealing lines.
For bottling line automation standards, see PMMI’s packaging machinery resources.
How It Works
Bulk caps are loaded into the hopper at the base of the elevator. A continuous belt or bucket elevator lifts the caps upward and delivers them to the top discharge point, where they feed into the cap sorting bowl or vibratory feeder connected to the sealing machine. The system runs continuously, ensuring a steady cap supply. A sensor-controlled auto-stop prevents overfilling the downstream cap bowl, and the system restarts automatically when the bowl level drops below the set point.
Key Features
- Continuous Automatic Cap Supply — Eliminates manual cap loading; feeds caps directly to sealing machine
- Sensor-Controlled Operation — Auto-start and auto-stop based on downstream cap bowl level
- High-Capacity Hopper — Large bulk hopper reduces frequency of refilling
- ROPP & Plastic Cap Compatible — Suitable for aluminium ROPP caps and standard plastic closures
- Compact Vertical Design — Space-saving vertical lift; minimal floor footprint
- Easy to Clean & Maintain — Simple design for straightforward cleaning and low maintenance
Applications
- Liquor & Distilleries — Continuous ROPP cap supply to monoblock and sealing machines
- Pharmaceuticals — Automatic cap feeding for high-speed pharma sealing lines
- Beverages — Cap supply for water, juice, and beverage ROPP sealing stations
Works directly with our Automatic ROPP Sealing Machine and monoblock machines for seamless cap supply.
Frequently Asked Questions
A bulk cap elevator is a conveying system that lifts bulk caps from a floor-level hopper and delivers them continuously to the cap feeding bowl of a sealing machine, eliminating manual cap loading.
ROPP aluminium caps and standard plastic closures. Contact us for other cap types.
A sensor monitors the cap level in the downstream bowl. The elevator automatically stops when the bowl is full and restarts when levels drop.
The hopper capacity depends on the model. High-capacity hoppers allow extended runs with infrequent refilling.
Yes. The bulk cap elevator is designed to integrate with existing sealing machines and monoblock units.
